The Smart One-Way Bearing: How It Delivers Reliable Motion Control

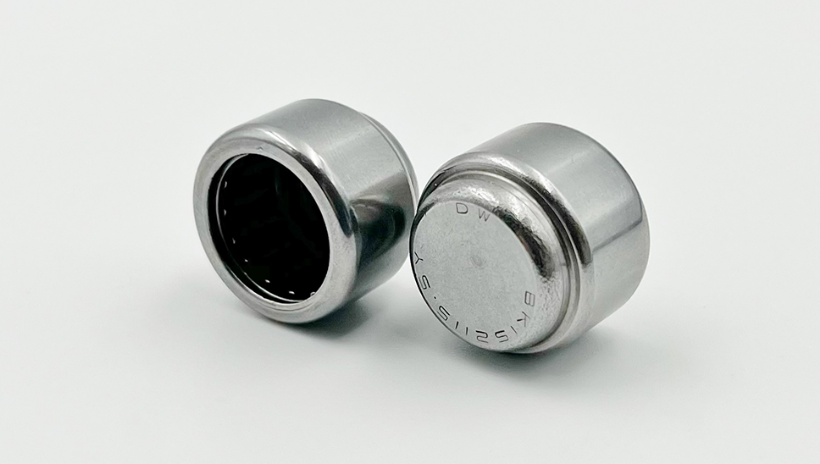

Drawn cup one way needle roller units represent an integrated engineering solution for precise unidirectional motion control in compact mechanical systems. Unlike standard bearings that permit free rotation in both directions, these specialized units are designed to allow rotation in one direction while preventing movement in the opposite direction through a reliable mechanical locking mechanism. This technical capability makes them indispensable components in automotive, industrial, and power transmission applications where controlled directional movement is essential.

What Makes It an “Integrated Unit”?

First, it’s important to understand what we mean by a “unit.” Unlike a basic bearing that’s just one piece of a puzzle, a drawn cup one way needle roller unit is a complete, ready-to-install assembly. Think of it like this:

A basic needle bearing is like a bag of loose LEGO bricks—you still need to build the structure and combine it with other parts.

A one-way needle roller unit is like a pre-built LEGO module. It has everything designed to work perfectly together, so you can just snap it into your machine and it’s ready to go.

This design saves space, makes installation super easy, and ensures everything works reliably right from the start.

The Three-Part Team Inside the Unit

So, what’s inside this clever unit? Three key players work together:

The Drawn Cup (The Outer Shell): This is the outer wall of the bearing. It’s called “drawn” because it's made from a single piece of metal stamped and formed into a cup shape. This makes it very strong and precise. Its job is to press snugly into the machine’s housing, becoming the outer raceway for the rollers. Once it’s pressed in, it doesn’t need any screws or extra parts to hold it in place—it’s a permanent, secure foundation.

The Needle Rollers (The Hard Workers): These are the slim, cylindrical rollers inside. Their “needle” shape means many of them can fit into a small space, allowing the bearing to handle a lot of weight (radial load) even in a compact design. In a one-way unit, their movement is what creates the locking action.

The Cage Assembly (The Organizer): This part holds all the needle rollers in perfect position, spacing them evenly around the shaft. It prevents the rollers from bumping into each other and keeps everything running smoothly at high speeds.

The Magic of One-Way Motion: How It Works

This is where the drawn cup one way needle roller unit gets really interesting. How does it allow free movement in one direction but not the other?

The secret isn't magic; it's clever mechanics. Inside the unit, the cage and needle rollers are designed with a slight cam or ramp shape on the inner surface.

Here’s the simple breakdown:

l Freewheeling Direction: When the inner shaft tries to spin in the “free” direction, it gently pushes the needle rollers along the shallow part of the ramp. The rollers don’t get jammed, so the shaft can spin smoothly inside the outer cup. It’s like rolling a ball down a gentle slope.

l Locking & Driving Direction: When the shaft tries to spin the opposite way (the “drive” direction), it forces the needle rollers up the steep side of the ramps. This action instantly wedges the rollers tightly between the shaft and the outer cup, creating a solid lock. This lock allows torque (twisting force) to be transferred from the shaft directly to the outer housing of the machine.

This reliable “roll-and-wedge” action is what provides stable one-way torque transmission, making it perfect for applications like starter motors, ratchets, and overrunning clutches.

Why Choose a One-Way Unit Over a Standard Bearing?

A standard bearing has one job: to let things spin smoothly with as little friction as possible. It doesn’t care about direction.

A drawn cup one way needle roller unit, however, is a motion control device. Its job is to manage and control that rotation. It adds a layer of intelligence to the machine, deciding when power should be transmitted and when it should be disconnected. This function is critical for safety, efficiency, and enabling specific machine operations like freewheeling, backstopping, or indexing.

Key Benefits at a Glance:

1. Space-Saving Design: Its compact, integrated form is perfect for tight spots in modern machinery.

2. Easy Installation: The drawn cup design presses in and stays put, saving assembly time.

3. High Load Capacity: Many small needle rollers can support significant weight and shock loads.

4. Reliable Performance: As a pre-assembled unit, it delivers consistent, dependable one-way locking right out of the box.

Conclusion: The Engineered Advantage of One-Way Units

In summary, the drawn cup one way needle roller unit is a precisely engineered motion control solution. It transcends the function of a standard bearing by integrating reliable unidirectional locking into a single, compact assembly. This design provides mechanical engineers with a space-efficient, easy-to-install component that ensures consistent one-way torque transmission for applications like indexing, overrunning, and backstopping.
