Machined Outer Ring Needle Roller Bearings: Built for the Toughest Jobs

When engineers design heavy machinery, construction equipment, or industrial gearboxes, they face a critical question: Which bearing can handle the constant pounding of high loads and sudden shocks? For applications demanding maximum strength and reliability, the answer often points to one specific design: the machined outer ring needle roller bearing.

But what exactly makes this type of bearing so tough? To understand its advantages, it’s helpful to compare it to another common type—the drawn cup needle roller bearing. While both use small cylindrical rollers to reduce friction, their outer rings are built very differently, and that difference is key to their performance.

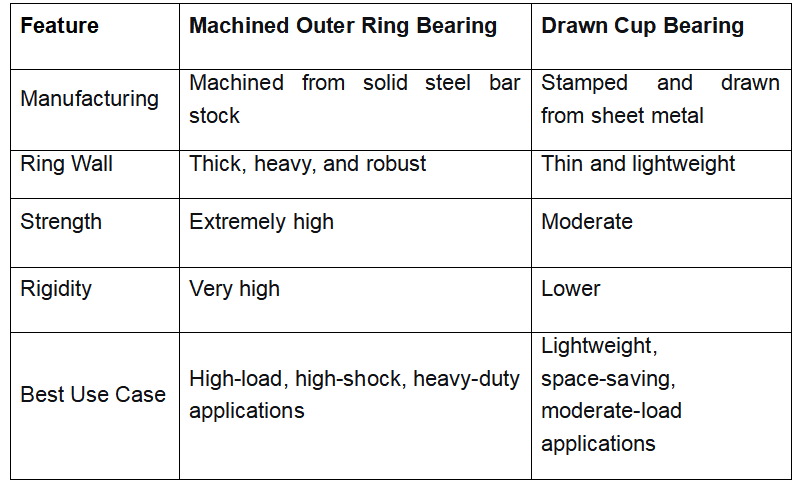

Two Different Constructions: Machined vs. Drawn Cup

Think of it like the difference between a custom-built, solid steel chassis for a heavy-duty truck and the lighter, stamped metal frame of a passenger car. Both are frames, but they are designed for completely different jobs.

Drawn Cup Needle Roller Bearings: These bearings start as a flat strip of steel. It is pressed (or "drawn") into a thin, cup-like shape using a special process. This makes the outer ring very thin and lightweight. The manufacturing process is efficient and cost-effective. These bearings are perfect for applications where space is tight, weight is a concern, and loads are moderate and steady—like in small power tools or automotive alternators.

Machined Outer Ring Needle Roller Bearings: As the name suggests, these bearings start as a solid piece of high-quality steel. The outer ring is then precisely cut, or "machined," into its final shape using lathes and grinders. This process is more involved, but it creates a robust, thick-walled ring that is significantly stronger and more rigid than a drawn cup.

 The Machined Advantage: Strength You Can Rely On

So, why choose the more robust machined version? It all comes down to how a bearing handles stress in demanding environments.

1. Superior Load Capacity

The thick, solid steel of a machined outer ring can withstand much higher radial forces (loads pressing down on the bearing) than a thin drawn cup. Under a heavy load, a drawn cup might begin to deform slightly. This deformation can change the internal geometry, putting uneven pressure on the needle rollers and leading to premature failure. A machined ring, however, maintains its perfect shape, ensuring the load is distributed evenly across all rollers for maximum capacity and longer life. At companies like Suzhou Dongwu Needle Bearing Co., Ltd., these bearings are engineered specifically for this kind of high-load performance.

2. Maximum Rigidity for Precision

In applications like machine tool spindles or heavy gearboxes, keeping components precisely in place is critical. Any flex or "give" in a bearing can lead to vibration, noise, and inaccurate operation. The rigid, machined outer ring provides a rock-solid mounting surface. It resists bending and flexing even under extreme force, ensuring shafts rotate smoothly and precisely. This rigidity is essential for maintaining accuracy in heavy-duty machining or keeping gears perfectly aligned in a high-torque transmission.

3. Built to Handle Impact and Shock

Heavy equipment often experiences sudden, jarring shocks—like a loader bucket hitting a rock or a punch press stamping metal. These impact loads can be powerful enough to crack or permanently dent a less robust component. The massive cross-section of a machined outer ring acts like a shock absorber, providing the inherent material strength to absorb these sudden forces without damage. This durability makes them the go-to choice for off-highway vehicles, construction machinery, and heavy industrial equipment.

Why Choose Machined for Your Heavy-Duty Application?

If you are designing or maintaining equipment that operates under high loads, experiences shock, or requires precise shaft location, a machined outer ring needle roller bearing is not just an option; it's an engineering necessity. You gain:

l Reliability: Reduced risk of bearing failure, leading to less downtime.

l Longevity: Bearings that last longer in tough conditions, lowering replacement costs.

l Performance: Maintained precision and smooth operation even under stress.

While drawn cup bearings have their place in lightweight applications, they simply cannot match the raw strength and rigidity of a machined design. When your machinery faces its toughest challenges, choosing a bearing with a machined outer ring means you're building it on a foundation of solid strength.

Want to Explore Your Options?

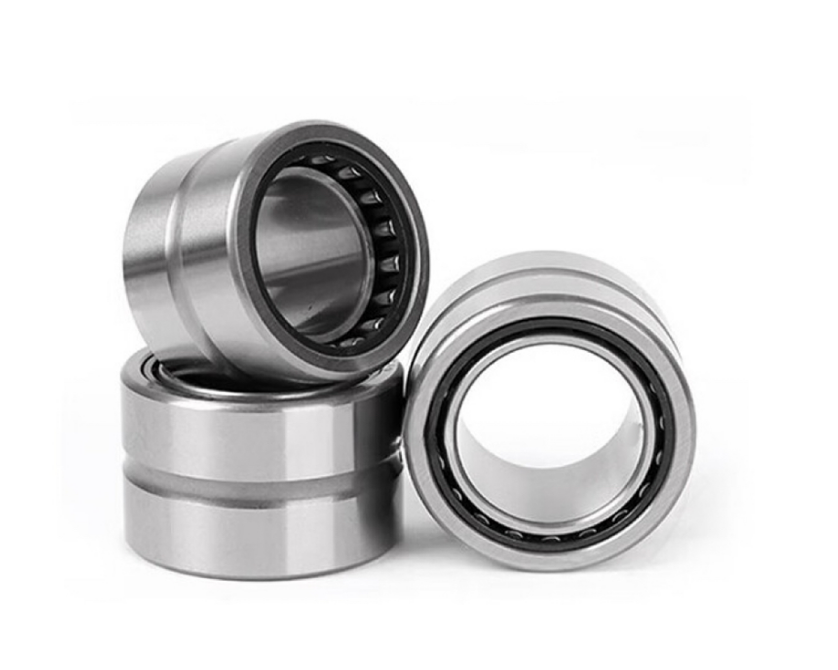

If your application demands this level of durability, you can explore our machined needle roller bearings, including NK, RNA, and RNAV series, designed to handle the most demanding industrial and heavy-duty applications. Choosing the right bearing from the start ensures your equipment is built to last.
