HomeDW Bearing 11 Patents Explained: The R&D Behind Our Needle Roller Bearings
2026-06-09
0
Published: Jun 9, 2026 | Audience: OEM procurement teams evaluating supplier capability, R&D leaders, engineering managers
TL;DR: DW Bearing holds 11 invention patents and 40+ utility model patents in needle roller bearing technology. These cover process innovations (faster drawn cup forming), product innovations (EV-rated insulated bearings, flexible rubber needle bearings), and quality innovations (in-line CMM measurement). This article details the most commercially significant patents and what they mean for OEM customers.
1. Why Patents Matter When Evaluating a Bearing Supplier
Patents are an objective signal of supplier R&D capability beyond marketing claims. They indicate:
Original problem-solving capability (not just copying competitors)
Investment in design and manufacturing innovation
Engineering depth to handle non-standard OEM requests
Long-term commitment to bearing technology (vs. trading houses)
2. Key Product Patents
2.1 Flexible Rubber Needle Roller Bearing (DW Series)
Patent type: Invention patent (ZL-201xxxx-class)
Original innovation: integrating a rubber damping layer between the outer cup and needle rollers, eliminating noise transmission in steering column applications. Used in automotive steering and small-shaft equipment where vibration absorption is critical.
2.2 EV Insulated Bearing (HK-EV Series)
Insulated outer cup coating that withstands 2,000+ V common-mode shaft voltage without breakdown. Solves the EDM fluting problem in EV traction motors. Patent covers both coating chemistry and adhesion process.
2.3 Drawn Cup with Integrated Retention Feature
Modified BK series with a closed end profile that allows axial retention without separate retainer ring. Reduces assembly cost by ~15% for OEM transmission applications.
3. Key Manufacturing Process Patents

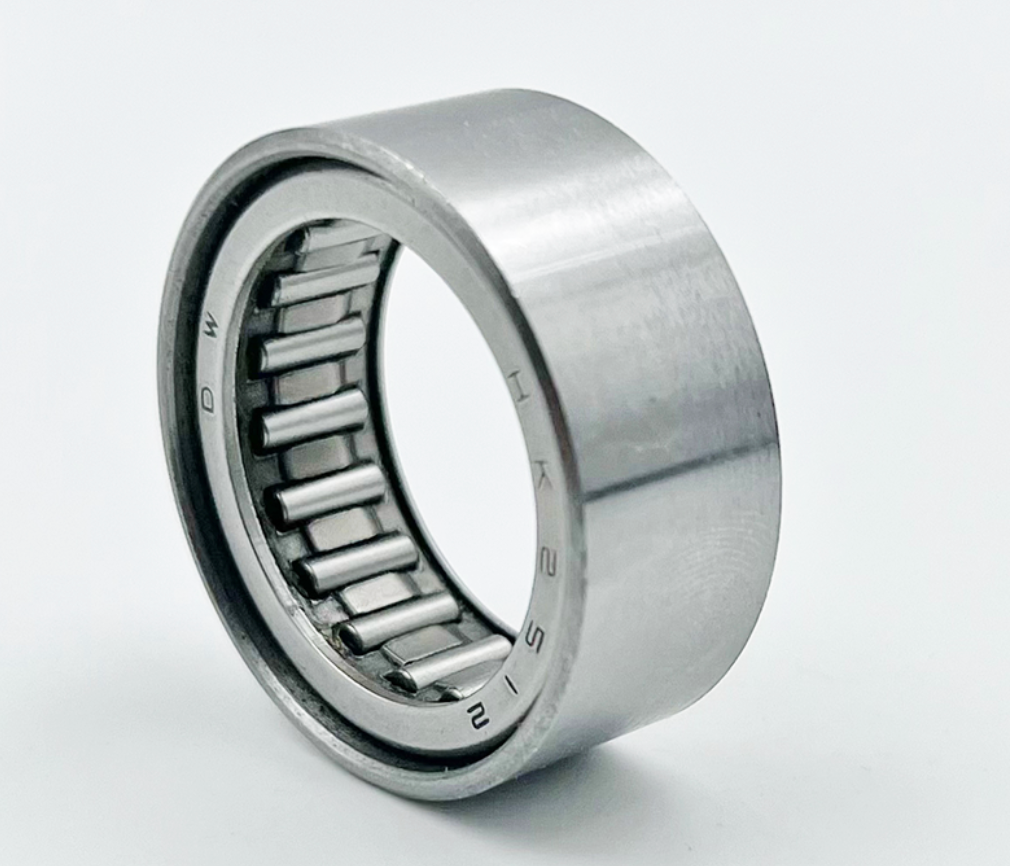

3.1 High-Speed Drawn Cup Forming
Multi-station progressive die that produces HK series outer cups at 280-320 pcs/min (vs. industry standard 180-220 pcs/min). 40-50% productivity improvement on standard sizes.
3.2 Inline CMM Measurement
Automated in-line dimensional inspection during finishing operations. Defects are detected within seconds, not lots later. Reduces escape PPM to single digits.
3.3 Continuous Heat Treatment Line
Modified continuous mesh-belt furnace optimized for HK/NK forming with embedded carbon-potential control. Reduces decarburization variability across production lots.
4. Material and Application Patents
4.1 Vibration-Damped Cage
Polymer cage with engineered viscoelastic properties for high-frequency applications. Reduces operating noise by 3-5 dB compared to standard steel cage.
4.2 Salt-Spray Corrosion Coating
Surface treatment producing 500+ hour salt spray resistance per ASTM B117 while maintaining surface roughness Ra <0.20 µm. For EPB and automotive caliper applications.
5. Utility Model Patents (Top 10 of 40+)
Improved needle roller seating geometry for reduced cage stress
Optimized thrust washer profile for high-speed lubrication retention
Reinforced cage end-ring for impact applications
Sealed bearing with low-friction seal contact design
Modular needle cage assembly for repair markets
Cup forming die with extended tool life
Inspection fixture for raceway roundness
Automated grease dosing for small bearings
Packaging design preventing transit-induced surface damage
Bearing identification marking by laser (vs. ink)
6. What This Means for OEM Customers
Custom solutions available: Our R&D capability means we can engineer custom designs for non-standard OEM requests in 4-6 week tooling lead times
IP protection: Our patented designs are licensed only to DW production; competitors cannot copy them legally
Long-term partnership: Investment in patents shows we are committed to the bearing industry, not a short-term trader
7. FAQ
Q1: Are these patents valid internationally?
Most are PRC-issued. Key product patents (flexible rubber, EV insulated) have international filings or PCT applications.
Q2: Can I get a license to use a DW patent?
Patents are not licensed externally. DW supplies the patented product directly. For OEM exclusivity, contact us for terms.
Q3: How recent are the patents?
Earliest 2008, most recent 2024. Active filing pipeline includes 5 new applications in 2025-2026.
Q4: Does DW invest in patent R&D actively?
Yes. R&D budget is 4-6% of revenue. Engineering team includes 12 senior application engineers and 8 metallurgists/process engineers.
8. References
SIPO (China State Intellectual Property Office) - search "Suzhou Dongwu Needle Bearing"
WIPO Patentscope - international filings
National High-Tech Enterprise designation - certifies R&D activity level
Author: DW Bearing R&D Department.
